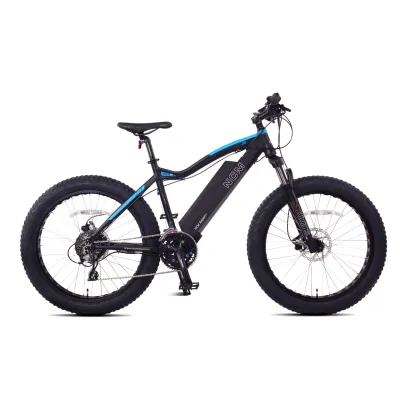

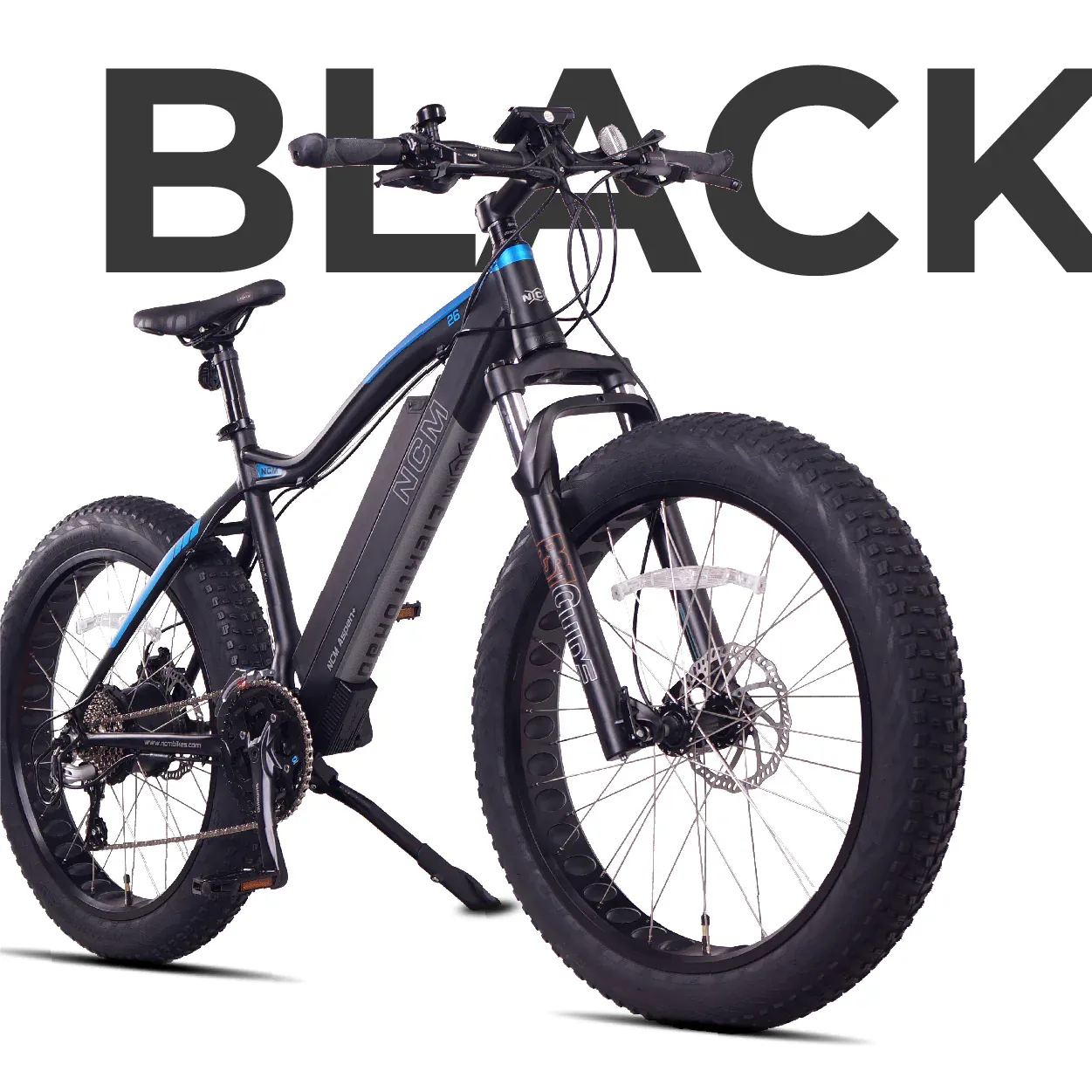

With a large tire width, the NCM Aspen + is hugely capable. Developed in Iceland for riding on snow and ice the Fat bikes large tires surface area make it great for soft terrain including sand and gravel. This E-bike is designed with a tough aluminium frame, and a strong rigid handlebar and saddle for improved ergonomics and performance. The high top tube, makes the bike sturdy and strong allowing the power you put down to be effectively transferred to the road.

BIKE COMPONENTS

• Frame: Alu. 6061, 26"*18.9 inches
• Suspension Fork: RST, Guid-TNL-26, Alu.
• Brake: F/R: Tektro Hydraulic Disc Brakes,HD-E350
• Freewheel: 8 Speed, 11-32T, Sliver
• Tire: CST, C1752, 26"*4.0, Black
• Saddle: Selle Royal, LOOKIN, Black
• Stem: Promax. Alu.MA-471, Ext 90mm
• Crank: Shimano, Acrea, 28/38/48T
• Shifter: Shiamno,Altus, F: M315-L, 3-Speed; R: M315-8R, 8-Speed
• Front Derailleur: Shimano, Altus, M310, 3-Speed
• Rear Derailleur: Shimano, Acera, M360, 8-Speed

ELECTRIC COMPONENTS

• Battery: Das-Kit, i5-4816, 48V 16AH, 768WH
• Motor: Das-Kit, X15-fat, Rear drive motor, 48V 500W, 32KM/H
• Controller: Das-Kit, CT5-I5, 48V 18A
• Charger: 48V 3A, US standard
• Display: Das-Kit, C7, 6 Levels
• Front Light: Cateye, Front reflector
• Rear Light: Cateye, Rear reflector

WEIGHT

• Net Weight (with battery): 30.0kg
• Battery Weight: 4.0kg
• Max Load (driver+bike): 125.0kg
