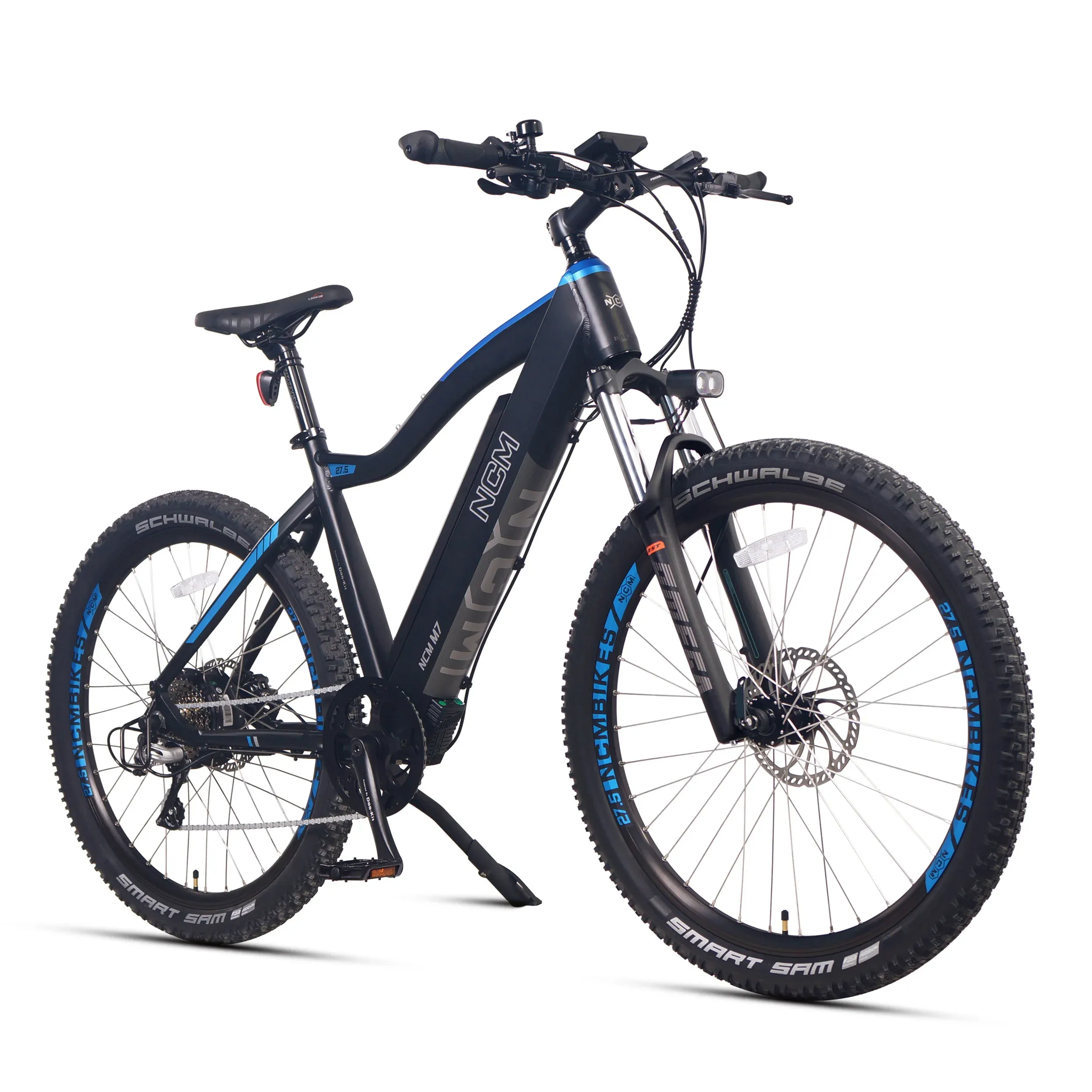

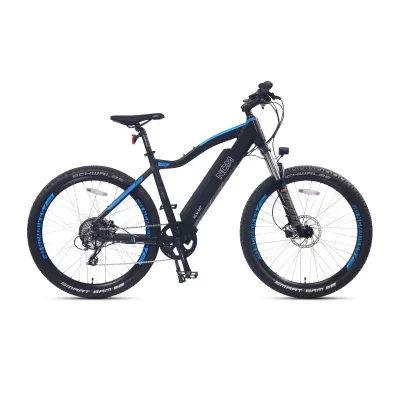

Starting conquering the trails with this well spec'd eMTB from NCM. The NCM M7 eMTB is an e-mountain bike equipped with high-end brake and drive systems, the NCM M7 is for adventurous riders who want to hit the trails comfortable in the knowledge that their ebike can handle whatever they throw at it.

Bike Components:

• Frame: Alu. 6061, 27.5"x480mm
• Suspension Fork: RST, OMEGA-TNL-27.5, with hydraulic lock system, Magnesium
• Brake: F: Das-Kit, hydraulic disc brake, DK-100E, 180mm rotor
• R: Das-Kit, hydraulic disc brake, DK-100, 180mm rotor
• Freewheel: 8 Speed, 11-32T
• Tire: Schwalbe, Smart Sam, 27.5"x2.35, Black
• Saddle: Selle Royal, Lookin-A200UR, Black
• Stem: Promax, Alu.MA-471
• Crank: Das-Kit, 46T
• Shifter Right: Shimano, Altus, R: SL-M315-8R, 8 Speed
• Rear Derailleur: Shimano, Acera, RD-M360
• Chain: KMC, Z8.3RB, Silver

Electrical Components:

• Battery: Das-Kit, i7-4819, 48V 19AH, 912Wh, with TAG Technology
• Motor: Das-Kit, X15, rear drive motor, 48V 500W, 32KM/H
• Controller: Das-Kit, T7, 48V 18A
• Charger: Das Kit, 48V 3A
• Display: Das-Kit, C8, with USB
• Front Light: DH007Plus, 48V, 70Lux

Weight:

• Weight (without battery): 23KG (50.7lbs)
• Battery Weight: 4.8KG (10.6lbs)
• Max Load (rider+bike): 125KG (275.6 lbs)
